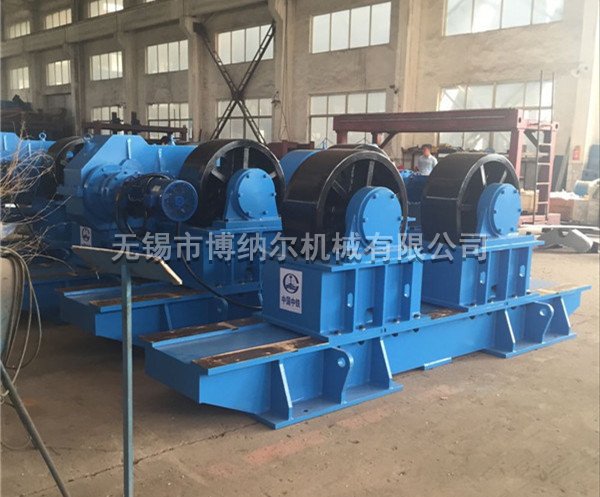

Welding Rotator

2019-03-18 21:02

Detailed description

The roller frame can be divided into two forms: self-adjustable and adjustable. Used for welding, polishing, glue lining and assembly of cylindrical cylinder, self-adjusting roller frame can adjust itself according to the size of cylinder; adjustable roller frame can adjust by screw or screw grading, adopt AC frequency conversion control, linear speed is digital display, advanced and reliable. Our factory can also design and customize various types of roller racks according to the needs of users.

According to the diameter of the workpiece, the swing of the roller group can be automatically adjusted without manual adjustment. The combined roller has large load-carrying capacity and strong driving capacity. According to the driving mode, it can be divided into two forms: single-drive and double-drive.

Main technical parameters

ZG Series Self-adjusting Roller Frame

Specification type			HZG-5	HZG-10	HZG-20	HZG-30	HZG-40	HZG-60	HZG-80	HZG-100	HZG-150	HZG-200
Rated load (T)			5	10	20	30	40	60	80	100	150	200
Workpiece scope		D3(mm)	250	320	450	450	600	750	850	1000	1200	1500
		D4(mm)	756	908	1224	1224	1338	1576	1784	2005	2405	2855
		D5(mm)	2300	2800	3500	3500	4200	4800	5000	5500	6500	8000
Rubber wheel		D1(mm)	250	300	350	350	400	450	500	500	-	-
Rubber wheel		W1(mm)	100	120	120	120	120	120	120	120	-	-
Metal wheel		D2(mm)	240	290	340	340	390	440	490	490	550	550
Metal wheel		W2(mm)	15	25	30	30	40	50	60	70	280	260
Line speed(m/h)			6-60
Speed regulation mode			Electromagnetic Speed Regulation or Frequency Conversion Speed Regulation
Motor power(KW)			0.75	1.1	1.5	2.2	3	4	4	5.5	5.5	7.5
Outline size	active	L4(mm)	1520	1800	2180	2180	2500	2780	3040	3450	3950	4310
	active	W4(mm)	800	830	956	956	1145	1237	1165	1405	1710	1810
	passive	L3(mm)	1350	157	1910	1910	2170	2400	2670	2930	3480	3840
	passive	W3(mm)	420	420	486	486	530	590	620	730	900	930
	H(mm)		648	800	933	933	1030	1135	1198	1320	1550	1700

KG Series Screw Adjustable Roller Frame

Specification type			HGK-2	HGK-5	HGK-10	HGK-20	HGK-30	KG-40	HGK-60	HGK-80	HGK-100	HGK-160	HGK-200	HGK-250	HGK-300	HGK-400	HGK-500	HGK-630	HGK-800
Rated load (T)			2	5	10	20	30	40	60	80	100	160	200	250	300	400	500	630	800
Workpiece scope		D3(mm)	200	250	320	500	500	600	700	700	700	1000	1000	1000	1000	1000	1000	1000	1500
Workpiece scope		D4(mm)	1800	2300	2800	3500	3500	4200	5000	5500	6000	6000	6000	7500	7500	7500	8000	8500	900
Rubber wheel		D1(mm)	200	250	300	350	350	400	450	500	500	-	-	-	-	-	-	-	-
Rubber wheel		W1(mm)	80	100	120	120	120	120	120	120	120	-	-	-	-	-	-	-	-
Metal wheel		D2(mm)	190	120	290	340	340	390	440	490	490	550	550	700	800	800	850	850	1000
Metal wheel		W2(mm)	15	20	30	35	35	45	60	70	80	320	320	260	300	300	350	350	350
Line speed(m/h)			6-60
Speed regulation mode			frequency control
Motor power(KW)			2*0.18	2*0.37	2*0.55	2*1.1	2*1.1	2*1.5	2*2.2	2*3	2*3	2*4	2*4	2*5.5	2*5.5	2*5.5	2*5.5	2*7.5	2*7.5
Outline size	active	L4(mm)	1956	2090	2772	3144	3144	3310	4165	4365	4665	4900	4190	6550	6500	6600	6850	7200	7700
	active	W4(mm)	457	503	671	674	674	710	865	900	960	1000	1120	1000	1179	1280	1280	1440	1480
	passive	L3(mm)	1460	1800	2300	2450	2450	2900	3500	3700	4000	4000	4100	5500	5500	5500	5750	6000	6500
	passive	W3(mm)	280	300	400	514	514	530	650	700	760	800	780	920	880	1000	1000	1260	1260
	H(mm)		350	425	510	674	674	675	825	890	955	1060	1080	1060	1375	1180	1350	1350	1550

SKG screw adjustable roller frame

Specification type			CHGK-2	CHGK-5	CHGK-10	CHGK-20	CHGK-30	CHGK-40	CHGK-60
Rated load(T)			2	5	10	20	30	40	60
Workpiece scope		d(mm)	200	250	320	500	500	600	700
Workpiece scope		D(mm)	1800	2300	2800	3500	3500	4200	5000
Roller diameter and width	Rubber wheel	D1(mm)	200	250	300	350	350	400	450
	Rubber wheel	W1(mm)	80	100	120	120	120	120	120
	Metal wheel	D2(mm)	190	240	290	340	340	390	440
	Metal wheel	W2(mm)	15	25	30	30	40	50	60
Line speed(m/h)			6-60
Speed regulation mode			Variable Frequency Poleless Speed Regulation
Motor power(KW)			2*0.18	2*0.37	2*0.55	2*1.1	2*1.1	2*1.5	2*2.2
Outline size	active	L4(mm)	1300	1800	2300	2400	2400	3000	3300
	active	W4(mm)	412	490	562	620	620	738	831
	passive	L3(mm)	1480	2205	2533	2687	2687	3300	3378
	passive	W3(mm)	350	370	480	480	480	600	600
	H(mm)		456	483	590	674	674	735	823
	h(mm)		170	180	220	255	255	270	298
Center Distance of Roller		A(mm)	280-950	400-1300	480-1400	600-1800	600-1800	800-2200	900-2100
